SLICK ROCK CONCRETE

Resources

We’re proud of the products we offer. Learn more about what sets Slick Rock concrete products apart, how to care for them, and view individual specifications and warranty information as needed by browsing the information below.

Downloads

Name Description Thumbnail
Slick Rock Catalog View Slick Rock's hand-crafted concrete planters, fire bowls and water features.
Slick Rock Care and Maintenance How to care for your concrete products from Slick Rock.
Slick Rock Tech Data See what sets Slick Rock concrete products apart from the rest.
Slick Rock Warranty & Liability Learn more about Slick Rock's product warranty and how to comply.
Slick Rock Specifications View individual product size and weight specifications.
AWEIS Replacement Install AWEIS Field Serviceable Replacement Parts Install Instructions
AWEIS 24VAC Install AWEIS Field Serviceable CG Install Instructions Round or Square Certified 24VAC
AWEIS 30VDC Install AWEIS Field Serviceable CG Install Instructions 30VDC
RidgeLine Fire Bowl Features 10 reasons why RidgeLine Fire Bowls are better
Clearing Debris From a Leaking Valve AWEIS Clearing Debris From a Leaking Valve
Water Bowl Install Kit Instructions Install Slick Rock water bowls in less than 60 seconds.
Match Lit Burner Install Instructions Assembly instructions for Match Lit Burner
SUBEIS Install Instructions Submersible Electronic Ignition Field Serviceable System Owner's Manual
30 VDC Operation / Install Manual Operation and Installation Manual for 30VDC

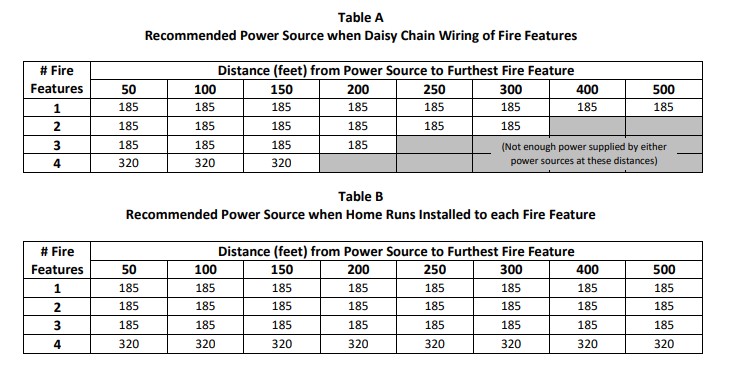

30 VDC Power Source Selection Chart Power Source Selection Chart for 30VDC
Table Top RidgeLine Fire Bowl Instructions Instructions for use.
AWEIS Troubleshooting Guide Step by step instructions and solutions to resolve issues with your AWEIS.

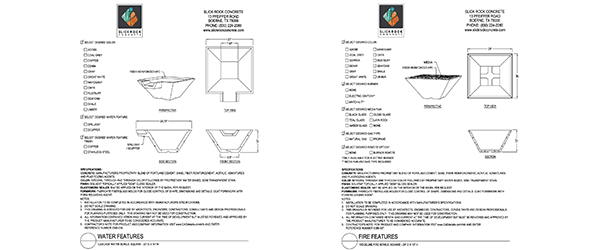

Specs + Drawings

We make it easy to find the right size and style of concrete planter, fire bowl, bollard or water feature. View individual specifications for every Slick Rock product and care their sizes with the drawings below.

Color Options

Each Slick Rock concrete planter, water feature, bollard or fire bowl is handcrafted and stained by our talented artisans. This allows for slight variations in color and a one-of-a-kind finish on each product. Choose from our Essential and Vivid colors or contact our team today for a custom color.
Request Samples

Colors

Adobe
Mahogany
Gray

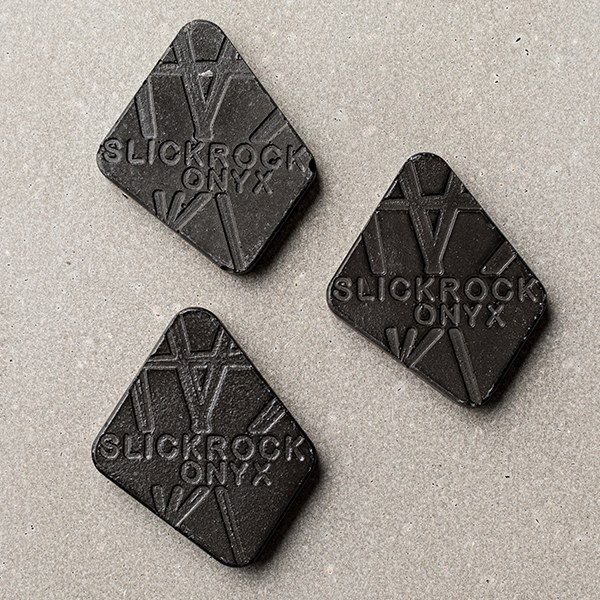

Onyx

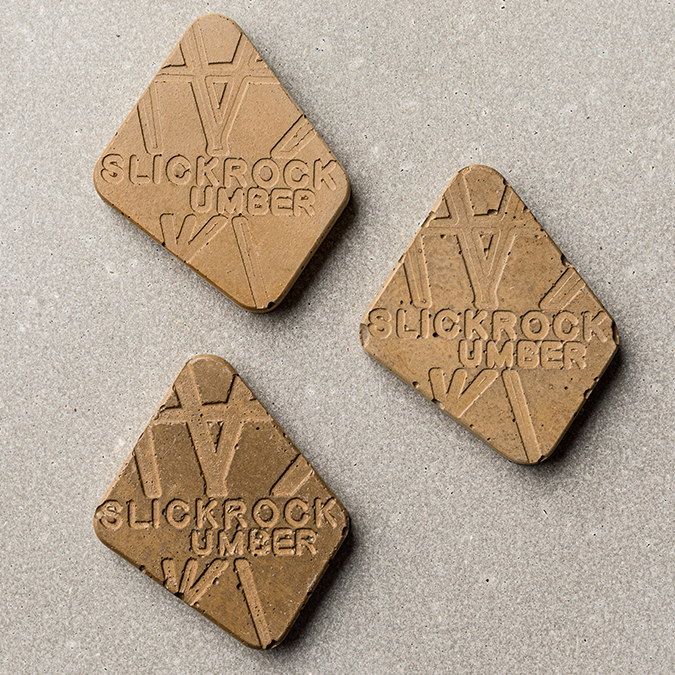

Umber

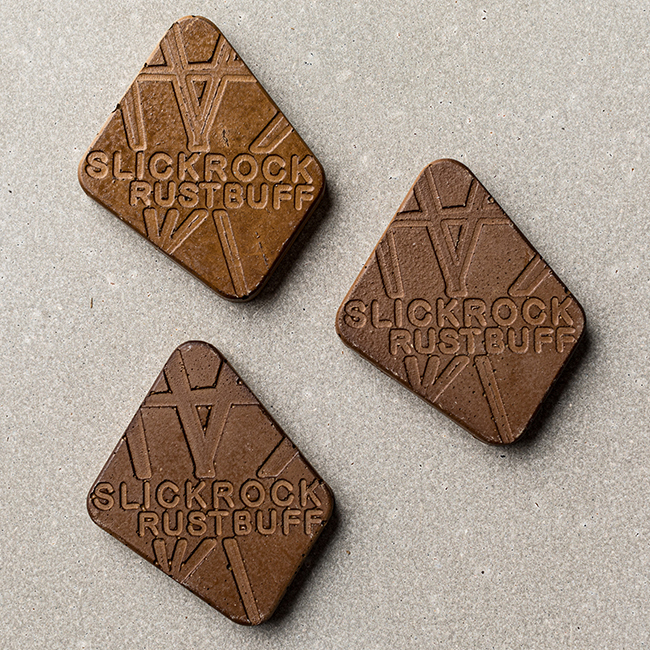

RustBuff

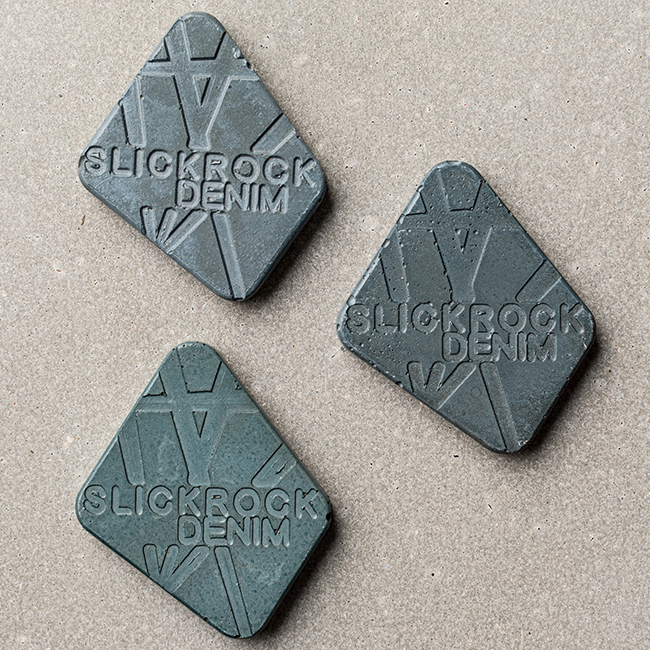

Denim
CoalGray

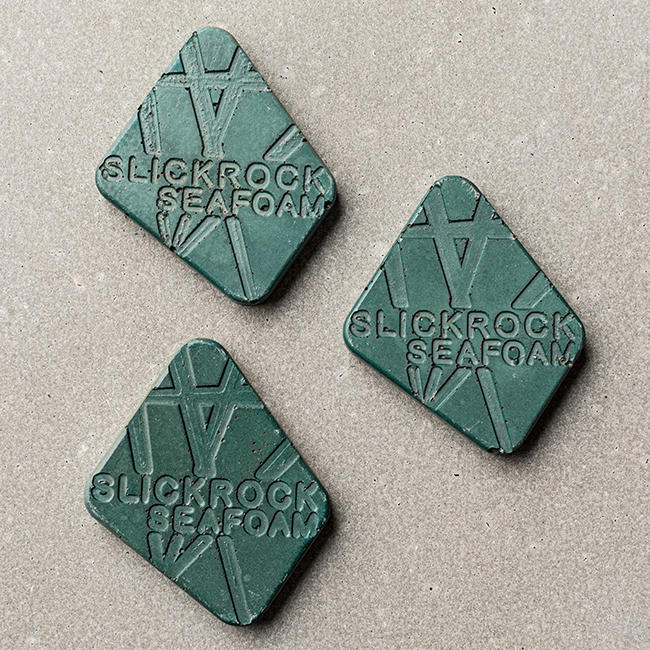

Seafoam

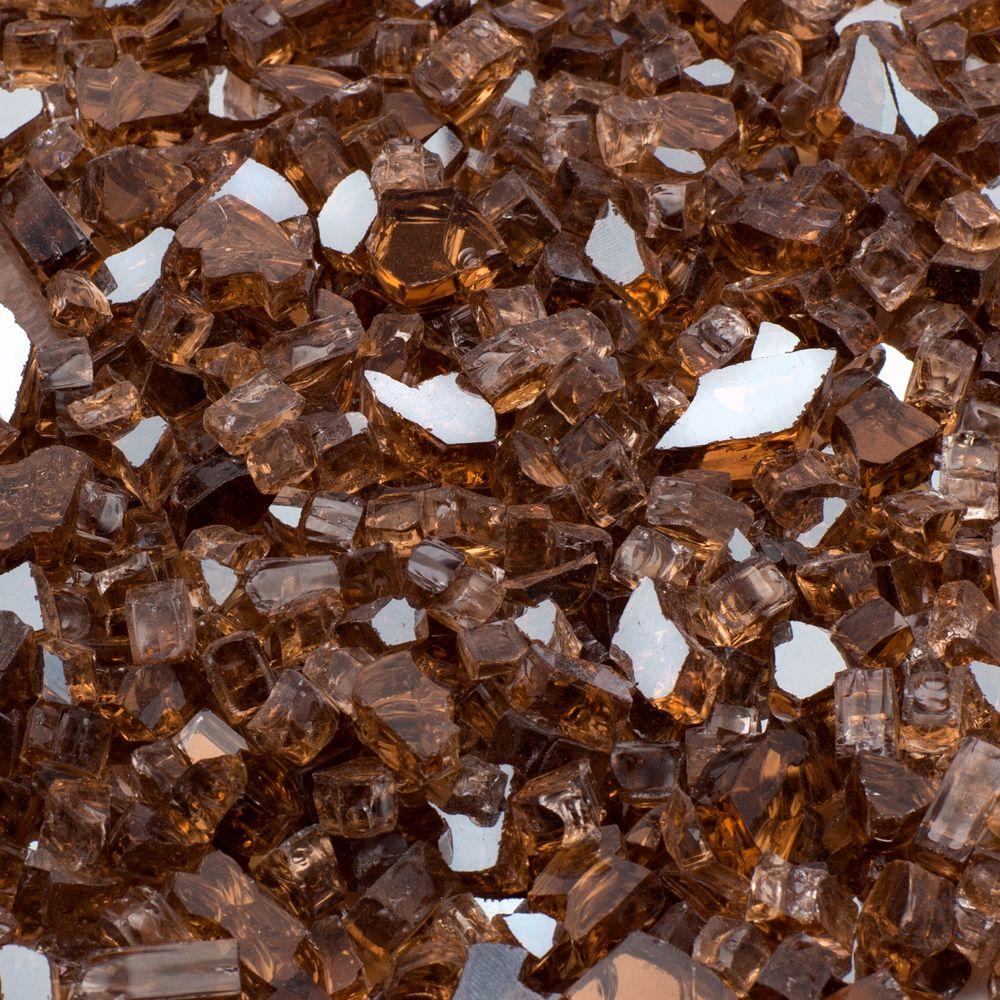

Copper
Shale
GreatWhite

Media Options

Black Glass
Amber Glass
Blue Glass
Clear Glass

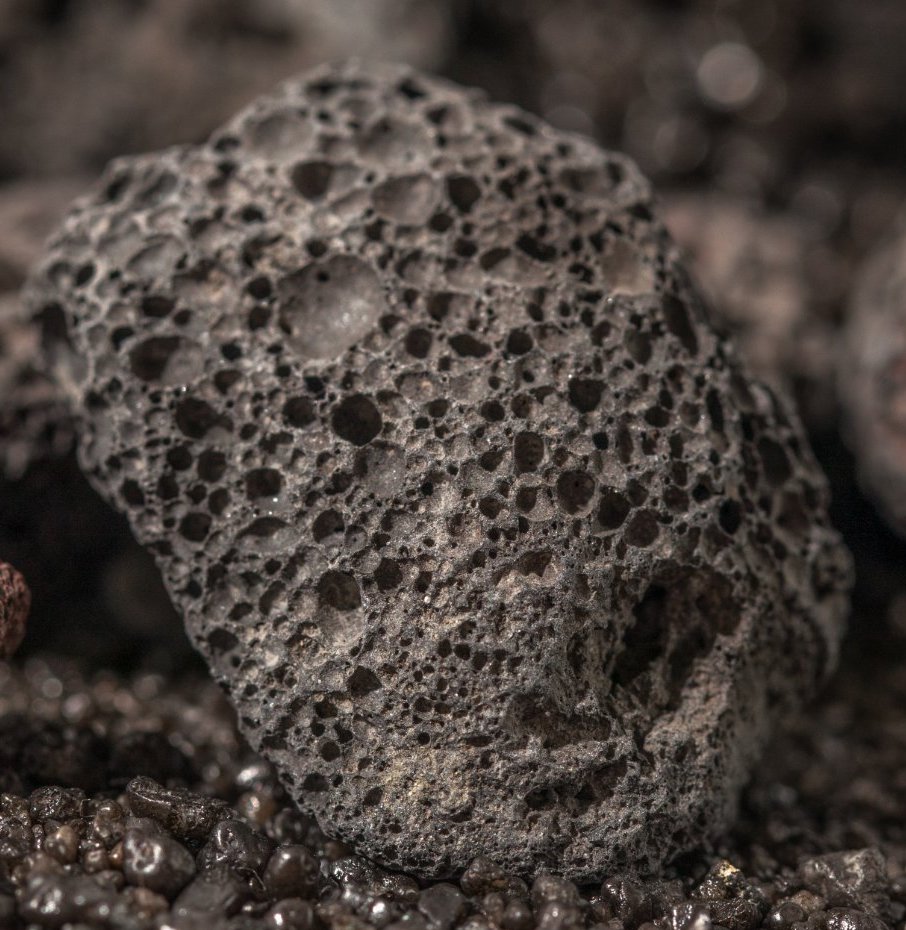

Lava Rock

Burner Options

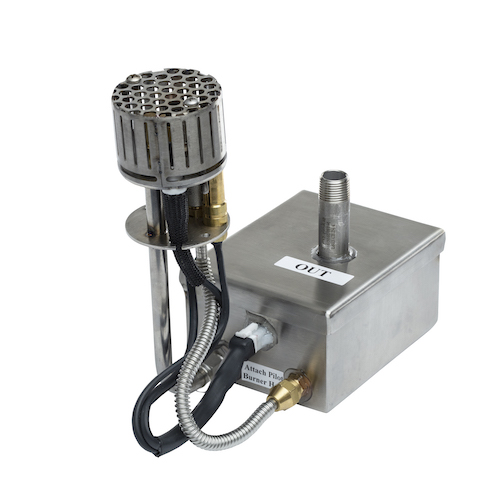

SUBEIS 24V Automated
  • Submersible Electronic Ignition System
  • 9” Diameter Submersible Manifold - Hoop Style
  • 24 volt AC Transformer
  • Max. Btu Output: 400K Btu/hr
  • ⅜” Gas Inlet
  • Operating Gas Pressure: ½ psi (14”WC)
  • Natural Gas & Propane Options
  • Additional Options
  • Remote Control
  • Bluetooth Control
  • Timer Switch
  • Emergency Shut Off Key Switch
Electric Ignition Burner
  • All Weather Electronic Ignition System

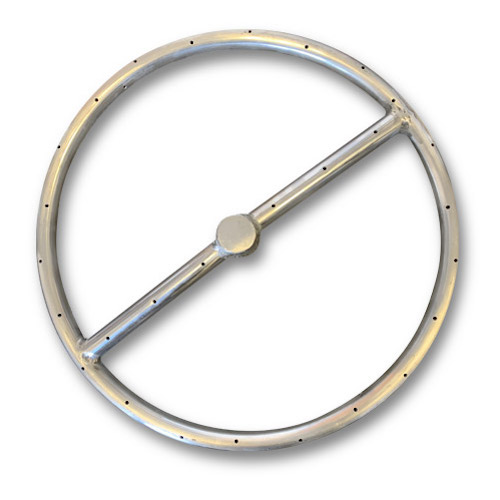

  • Stainless Steel Burner Ring
  • 24 volt AC Transformer
  • Pilot Burner Assembly
  • Ignition Control Module
  • BTUs (22” Basin): 31K
  • BTUs (29” & 34” Basin): 83K
  • ½” Gas Inlet
  • Natural Gas & Propane Options
  • Media Pan (Media not included)
  • Additional Options
  • Remote Control
  • Bluetooth Control
  • Timer Switch
  • Emergency Shut Off Key Switch
Match-Lit Burner
  • Stainless Steel Burner Ring
  • Key Valve, Key and Cover Plate
  • BTUs: 200-300K
  • ½” NPT Supply
  • Natural Gas & Propane Options
  • Media Pan (media not included)
30VDC
  • Maximum Gas Output: 200K Btu/hr
  • Control Box Dimensions: 4 1/2" x 5" 4 1/2" (W x L xH)
  • Standard Pilot Burner Configuration: (1) Pilot Burner
  • Inlet / Outlet Size: 1/2" FIP
  • Electrical Rating: 30 Volt DC
  • Flame / Heat Sense: Thermopile
  • Ignition Type: Silicon Nitride Hot Surface Ignition (Glow Plug)

Video Tutorials

How to Install your Match-Lit Kit

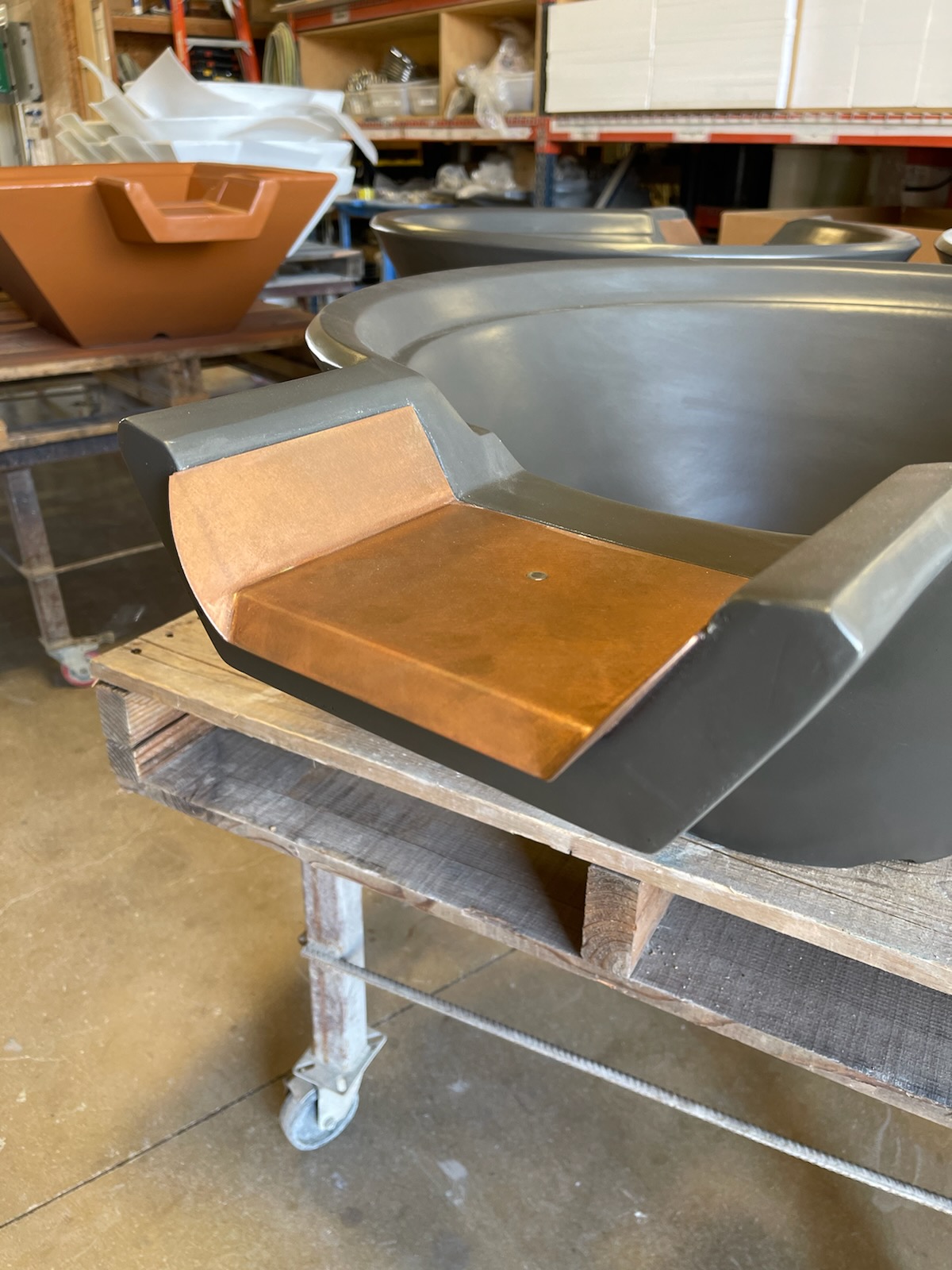

Spillway + Scupper

Spillway

What its used for:

  • Water Features with just water.
  • Water + Fire Features with a SUBEIS unit burner (flames dance on the water)

What it is:

  • Metal insert
  • Copper or Stainless Steel

Why:

  • Improves water flow
  • Cleaner waterfall
  • Adds a decorative material that compliments the beauty of concrete

Scupper

What its used for:

  • Planters with water elements. (Water is plumbed through separately from the bowl)
  • Fire Features with water elements. (Water is plumbed through separately from the bowl and Fire Feature)

What it is:

  • Metal Insert
  • Copper or Stainless Steel

Why:

  • Separates the bowl from the water plumbing. Necessary for any buyer wishing for a Cascade Planter + Water feature or Cascade Fire + Water feature where the flame is separate from the water.
  • Improves water flow
  • Cleaner waterfall
  • Adds a decorative material that compliments the beauty of the concrete

Elastomeric Sealing

Keep water where it belongs by using Slick Rock Elastomeric sealer.  Designed to give you the best possible below grade moisture protection, Slick Rock Elastomeric Sealer provides a solvent free, low VOC monolithic, seamless membrane.  Applied to the interior of our concrete products, elastomeric sealer is designed to protect your investment from the damaging affects of moisture migration, freeze/thaw, and other below grade water related issues.

Product Comparison / Weight

It’s easy to find the perfect size, shape and weight of concrete product for your next landscape design with our product comparison chart. Need a specific size and don’t see it below? Speak with our team about a custom order today!
Product Name Height Diameter Length Weight
Wave Tall 38" Height 36" Diameter 769 lbs
Wave Medium 22" Height 36" Diameter 300 lbs
Wave Wide 17.5" Height 44" Diameter 380 lbs
Wave Small 14" Height 32" Diameter 196 lbs
Wave Large 30" Height 48" Diameter 575 lbs
Wave Extra Large 40" Height 60" Diameter 1200 lbs
Classic Small Catch 7" Height 33" Diameter 112 lbs
Classic Catch 12" Height 42" Diameter 187 lbs
Classic Sixty Catch 12" Height 60" Diameter 700 lbs
Classic Slim 36" Height 22" Diameter 178 lbs
Classic Small 12" Height 24" Diameter 99 lbs
Classic Large 30" Height 48" Diameter 694 lbs
Classic Medium 22" Height 36" Diameter 297 lbs
Classic Conical 14" Height 30" Diameter 99 lbs
Square Large 27" Height 36" Diameter 36 " Length 954 lbs
Square Linear 20" Height 17" Diameter 72 " Length 1005 lbs
Square Small 10" Height 30" Diameter 30 " Length 146 lbs
Square Rectangle 22" Height 30" Diameter 48 " Length 934 lbs
Square Tall 38" Height 20" Diameter 20 " Length 468 lbs
9' Oversized Planter 36" Height 48" Diameter 108 " Length 6000 lbs
Bouquet Medium 21" Height 36" Diameter 261 lbs
Bouquet Slim 36" Height 22" Diameter 248 lbs
Bell Tall 38" Height 32" Diameter 893 lbs
Bell Linear 22" Height 28" Diameter 60 " Length 740 lbs
Bell Round 22" Height 60" Diameter 1550 lbs
Ridgeline 34" (Square) 14.5" Height 34" Diameter 34 " Length 150 lbs
Ridgeline 34" (Conical) 14.5" Height 34" Diameter 150 lbs
Ridgeline 29" (Square) 13" Height 29" Diameter 29 " Length 125 lbs
Ridgeline 29" (Conical) 13" Height 29" Diameter 125 lbs
Ridgeline 22" (Square) 10" Height 22" Diameter 22 " Length 50 lbs
Ridgeline 22" (Conical) 10" Height 22" Diameter 50 lbs
Oasis Fire Bowl 16" Height 34" Diameter 465 lbs
48" Oasis Fire Table 20.25" Height 31" Diameter 48 " Length 440 lbs
60" Oasis Oval Bowl 15" Height 28.5" Diameter 60 " Length 480 lbs
Cascade 34" Fire + Water (Conical) 14.5" Height 34" Diameter 150 lbs
Cascade 34" Fire + Water (Square) 14.5" Height 34" Diameter 34 " Length 150 lbs
Cascade 29" Fire + Water (Conical) 13" Height 29" Diameter 125 lbs
Cascade 29" Fire + Water (Square) 13" Height 29" Diameter 29 " Length 125 lbs
Cascade 22" Fire + Water (Conical) 10" Height 22" Diameter 50 lbs
Cascade 22" Fire + Water (Square) 10" Height 22" Diameter 22 " Length 50 lbs
Cascade 34" Water (Conical) 14.5" Height 34" Diameter 150 lbs
Cascade 34" Water (Square) 14.5" Height 34" Diameter 34 " Length 150 lbs
Cascade 29" Water (Conical) 13" Height 29" Diameter 125 lbs
Cascade 29" Water (Square) 13" Height 29" Diameter 29 " Length 125 lbs
Cascade 22" Water (Conical) 10" Height 22" Diameter 50 lbs
Cascade 22" Water (Square) 10" Height 22" Diameter 22 " Length 50 lbs
Spill 12" Height 24" Diameter 99 lbs
Spill Half 16" Height 16" Diameter 36 " Length 242 lbs
Spill Classic Lg 18" Height 36" Diameter 480 lbs
Soaking Tub 24" Height 43" Diameter 72 " Length 1500 lbs
Concrete Fountain 26" Height 60" Diameter 1250 lbs
PSD Bench 23" Height 64" Diameter 5000 lbs
PSD Bench - Planter 24" Height 64" Diameter 5000 lbs
Camber Square 10.5" Height 30" Diameter 160 lbs
Camber Round 13" Height 29" Diameter 160 lbs
Horizon Fire Table 15" Height 36" Diameter 36 " Length 240 lbs
Trash Receptacle 35" Height 27" Diameter 480 lbs
Classic T 35" Height 27" Diameter 480 lbs
Prop 65 Warning
WARNING: Fire Bowls can expose you to chemicals including Lead and Lead Compounds, known to the state of California to cause cancer, and Carbon Monoxide, Lead and Lead Compounds known to the state of California to cause reproductive harm including birth defects. For more information go to www.P65Warnings.ca.gov.

  • Modern. Innovative. Awesome. Our concrete planters, basins, fire bowls, water features and bollards are hand cast by local artisans for both commercial and residential landscape design.
